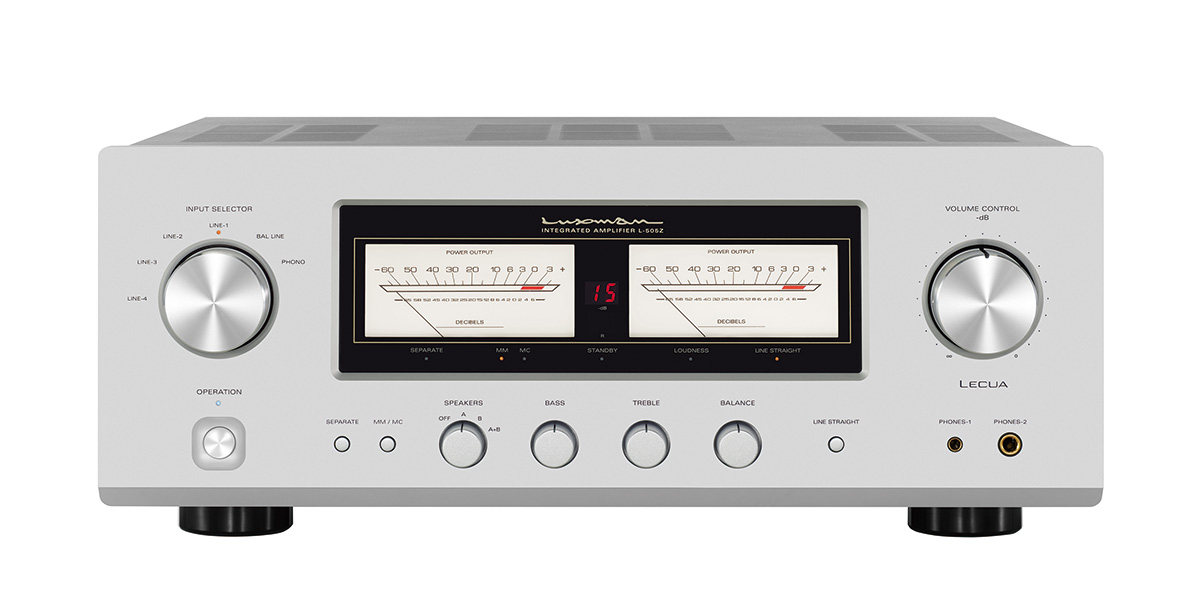

Luxman L-505Z Integrated Amplifier

Designed in honor of our L-505 amplifier, which continues to fascinate many audio enthusiasts as possibly our most familiar hi-fi model and equipped with our newly developed “LIFES” amplifier feedback engine, which is at the core of LUXMAN’s contemporary designs, we would like to complete the Z series circle with the L-505Z. While inheriting all the high-quality sound and design know-how from our higher-end models, it has achieved even more as a multifunctional integrated amplifier. Redefining the standard and now entering a new era, the L-505Z invites you into the world of exciting high-end audio.

Specifications

Rated output	100W + 100W (8Ω), 150W + 150W (4Ω)
Input sensitivity/ input impedance	PHONO (MM): 2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN IN: 1V/47kΩ
Output voltage	PRE OUT: 1V
Frequency response	PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion	0.009% or less (8Ω, 1kHz) 0.09% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A)	PHONO (MM): 87dB or more PHONO (MC): 70dB or more LINE: 104dB or more
Volume adjustment	LECUA
Amplification feedback circuit	LIFES 1.0
Output configuration	Bipolar parallel push-pull
Damping factor	200

Max. amount of tone control	BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz
Power supply	230V~(50Hz) / 115V~(60Hz)
Power consumption	330W 90W (under no signal), 0.5W (at standby)
External dimensions	440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth
Net weight	22.5kg (main unit)

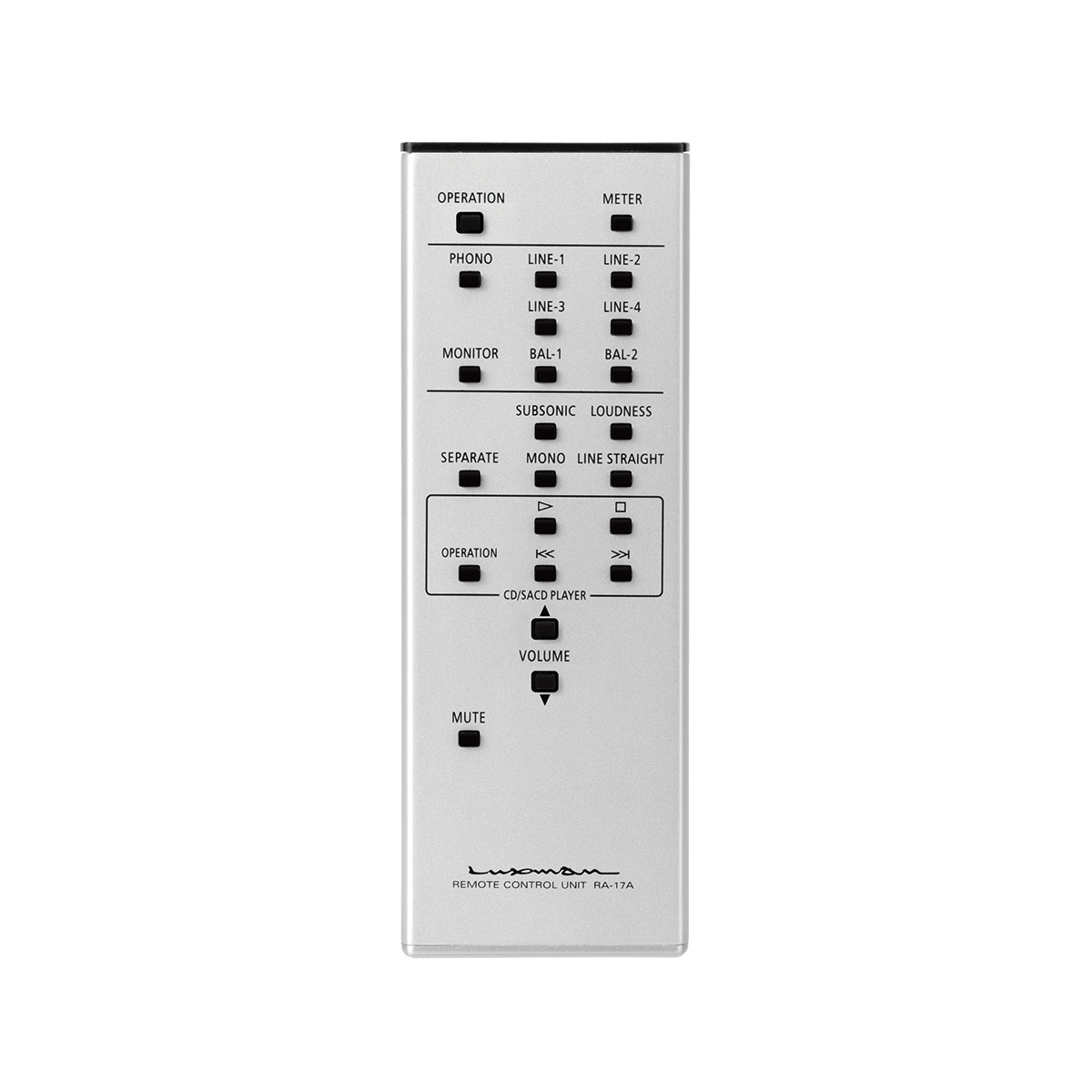

Accessories	Remote control (RA-17A) Power cable

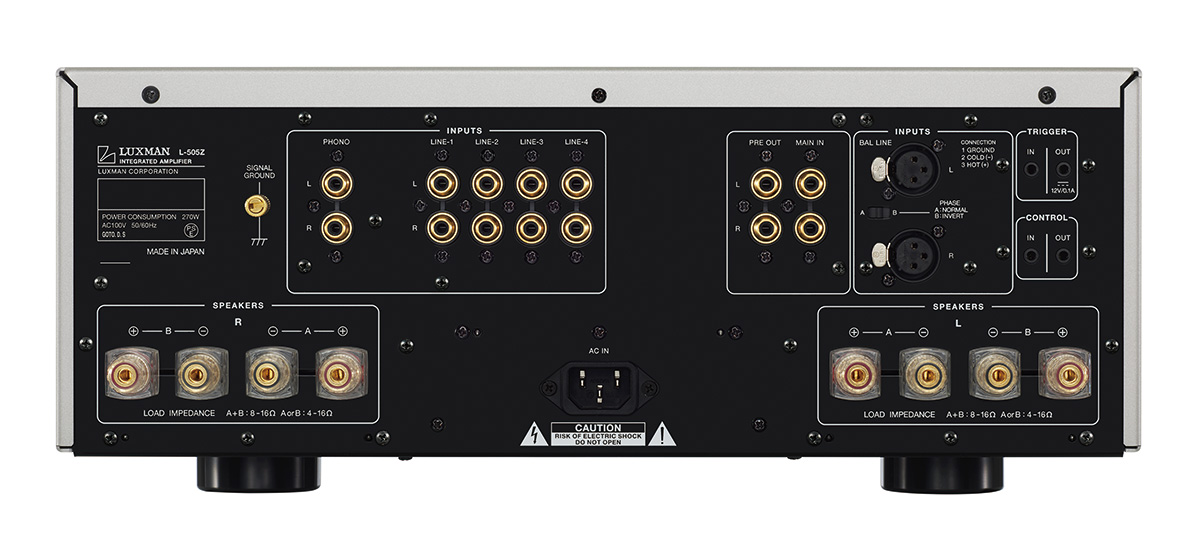

Speaker terminal Supported Y-lug terminal dimension	Width of part a: 15mm or less Width of part b: 8mm or more * Connection may not be performed depending on the shape of the Y-lug terminal.
