The integration of sophistication and technical evolution. Introducing our innovative Z series.

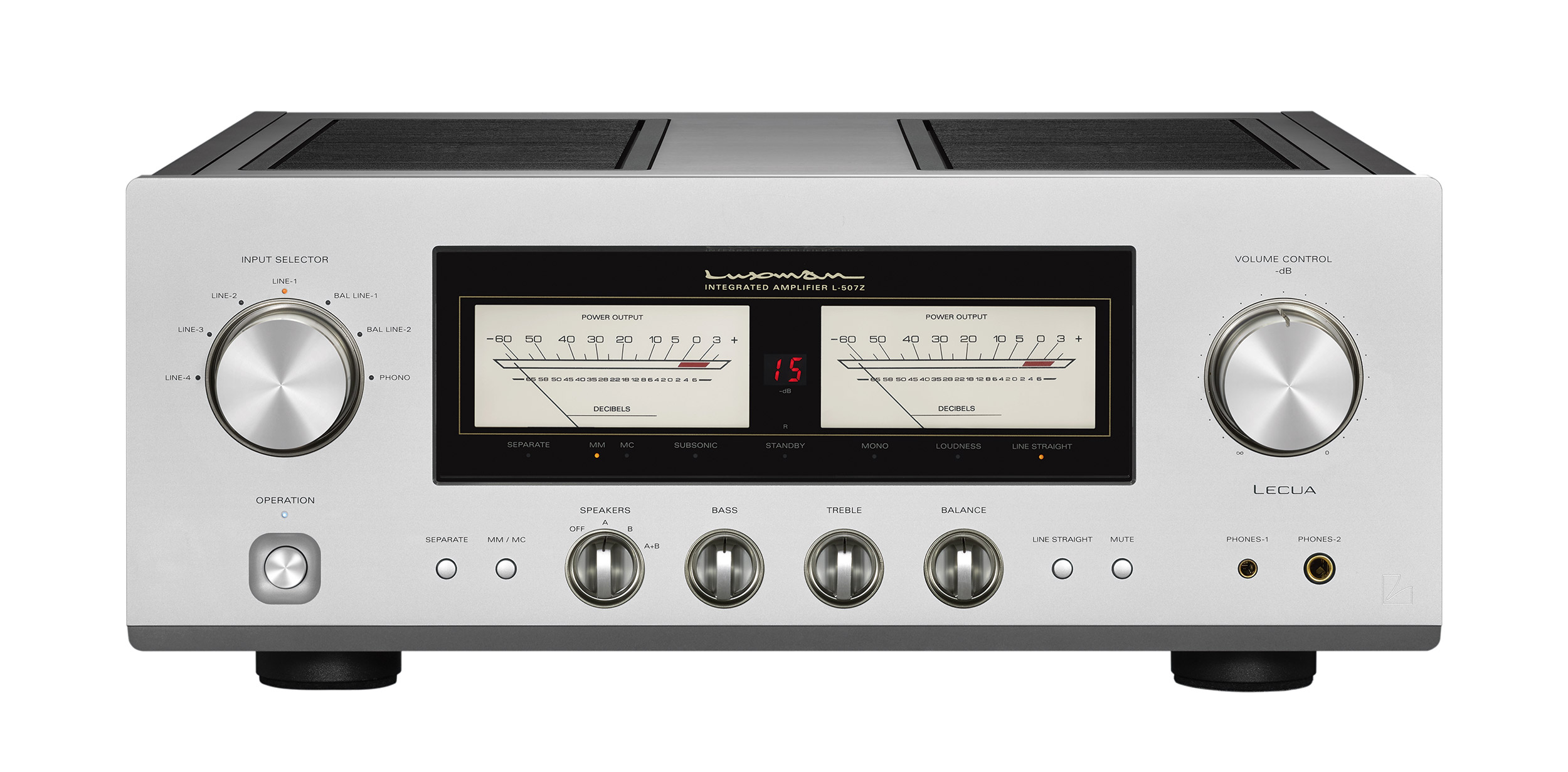

Luxman’s new generation Z series integrated amplifiers. The L-507Z is the debut model heralding our new generation of amplifier products. Featuring our newly developed LIFES amplification feedback engine, we look towards the future of Luxman. This amplifier has realized a dramatic development in musicality that goes far beyond its class. L-507Z combines advanced technology and sophisticated functionality. Our new, innovative Z series integrated amplifier generation begins with this superb model.
Specifications
Rated output | 110W+110W(8Ω) 220W+220W(4Ω) |
---|---|
Input sensitivity/ input impedance |
PHONO(MM): 2.5mV / 47kΩ PHONO(MC ): 0.3mV / 100Ω LINE: 180mV / 47kΩ BAL.LINE: 180mV / 79kΩ MAIN IN: 1.05V / 47kΩ |
Output voltage | PRE OUT: 1V |
Frequency response | PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) |
Total harmonic distortion | 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) |
S/N ratio (IHF-A) | PHONO (MM): 91dB or more PHONO (MC): 75dB or more LINE: 105dB or more |
Volume adjustment | New LECUA1000 |
Amplification feedback circuit | LIFES 1.0 |
Output configuration | Bipolar 3-parallel push-pull |
Damping factor | 300 |
Max. amount of tone control | BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz |
||
---|---|---|---|
Power supply | 230V~(50Hz) / 115V~(60Hz) | ||
Power consumption | 350W 86W (under no signal), 0.4W (at standby) |
||
External dimensions | 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth |
||
Net weight | 25.4kg (main unit) | ||

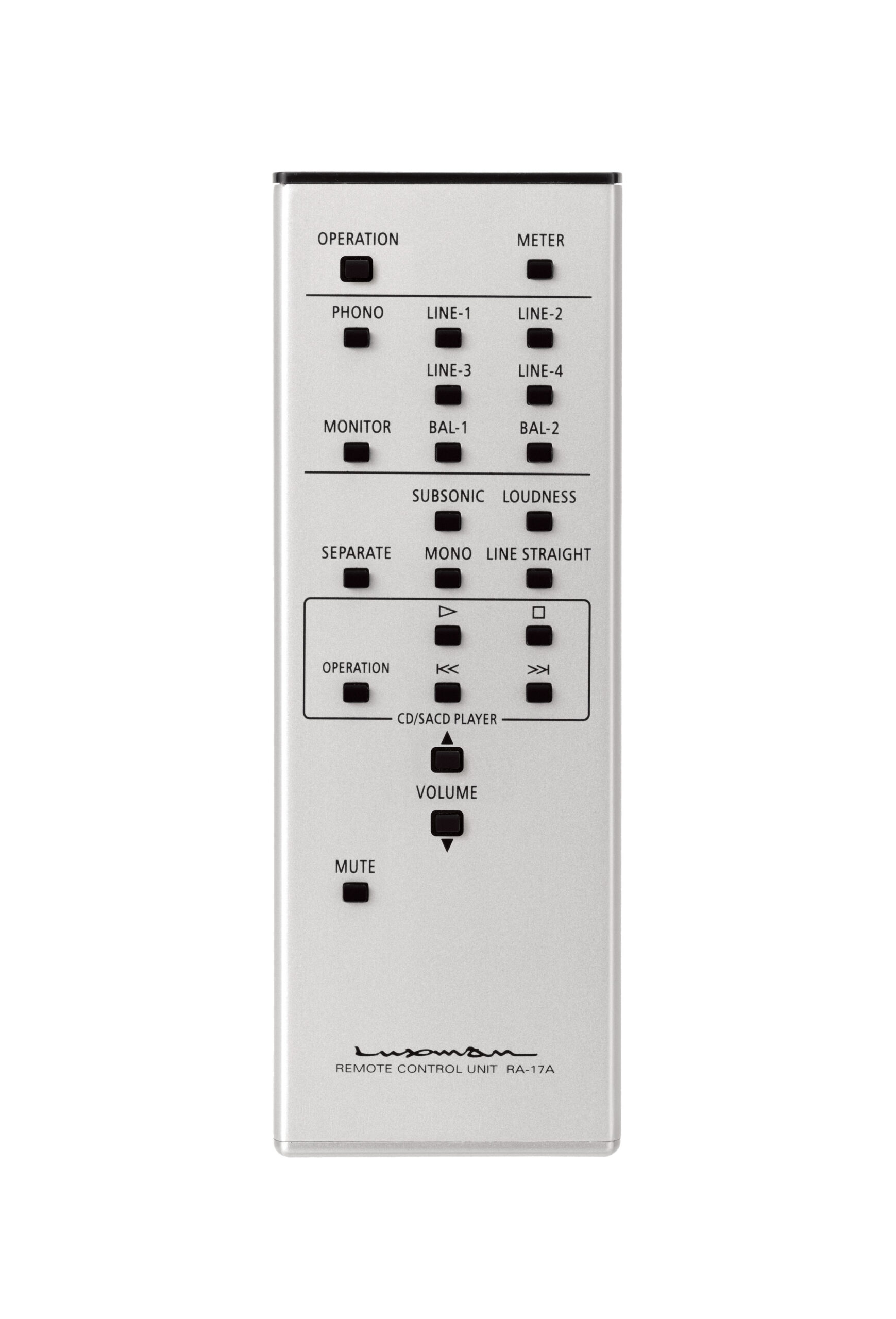

Accessories | Remote control (RA-17A) Power cable |
||
Speaker terminal Supported Y-lug terminal dimension |
|
