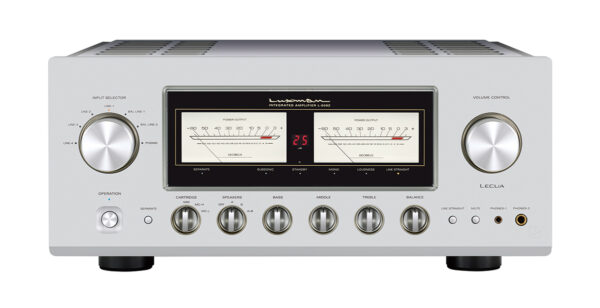

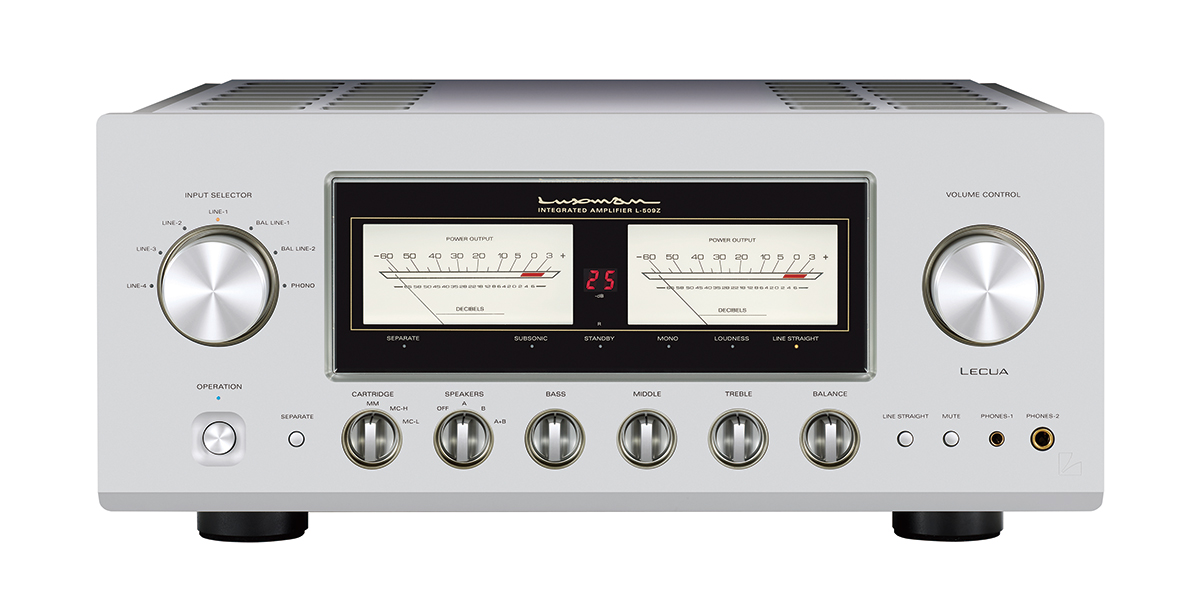

Name: LUXMAN L-509Z Integrated Amplifier
SKU: 5325
Availability: InStock

Introducing our next-level “single-chassis separates” concept,pursuing the ideal with a new, all-in-one flagship amplifier.Taking our Z-Series integrated amplifiers to a performance peak. As the premium model for the new Z-Series generation, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously use our new generation amplification feedback engine “LIFES” for the first time. The volume control is supported by our new “LECUA-EX” attenuator system that suppresses sound quality deterioration and realizes a more precise feel of operation. The “single-chassis separates” concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance. Pursuing the ideals of audio enthusiasm, we are combining our passion for music with improved technology. The L-509Z, a new pinacle of LUXMAN integrated amplifier design.

Specifications

Rated output	120W + 120W (8Ω) 220W + 220W (4Ω)
Input sensitivity/ input impedance	PHONO (MM): 2.5mV/47kΩ PHONO (MC-H): 0.3mV/100Ω PHONO (MC-L): 0.1mV/40Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/79kΩ MAIN IN: 1.1V/47kΩ
Output voltage	PRE OUT: 1V
Frequency response	PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion	0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A)	PHONO (MM): 87dB or more PHONO (MC-H): 70dB or more PHONO (MC-L): 62dB or more LINE: 106dB or more
Volume adjustment	LECUA-EX
Amplification feedback circuit	LIFES 1.0
Output configuration	Bipolar 4-parallel push-pull

Damping factor	330
Max. amount of tone control	BASS: ±8dB at 100Hz TREBLE: ±8dB at 760Hz TREBLE: ±8dB at 10kHz
Power supply	230V~(50Hz) / 115V~(60Hz)
Power consumption	390W 150W (under no signal), 0.5W (at standby)
External dimensions	440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth
Net weight	29.4kg (main unit)

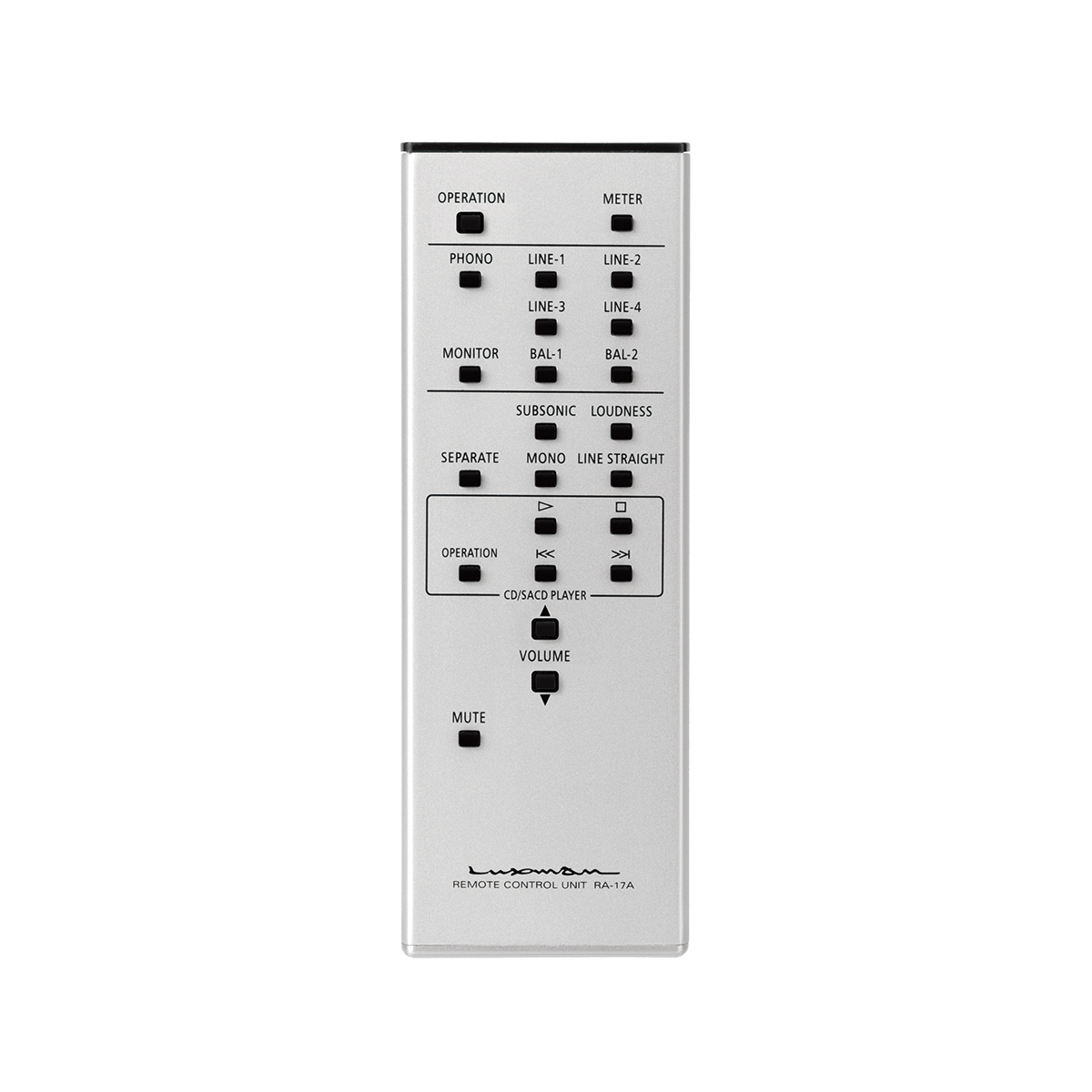

Accessories	Remote control (RA-17A) Power cable

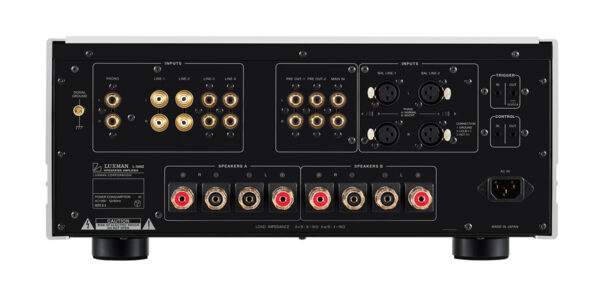

Speaker terminal Supported Y-lug terminal dimension	Width of part a: 16mm or less Width of part b: 7mm or more * Connection may not be performed depending on the shape of the Y-lug terminal.
